Feuling Reaper 521 Race Series Cam Chest Kit for '17-22 Harley Davidson M8 - Oil Cooled/Chain Drive

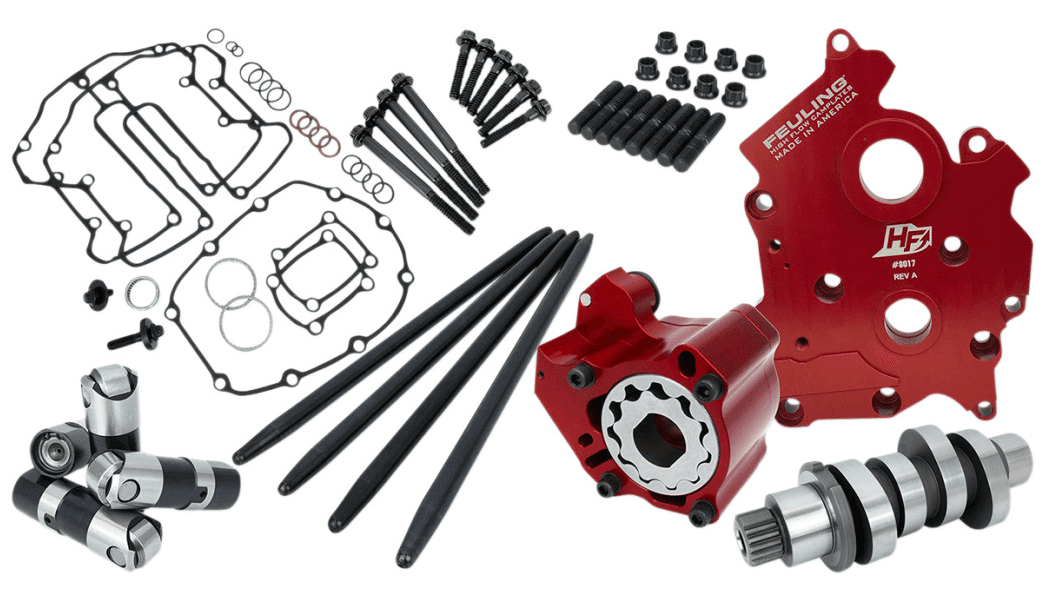

FEULING M-Eight OIL COOLED camchest kits include all necessary components from top to bottom of the camchest conveniently packaged under 1 part #. These combination kits not only ensure each individual part is designed to work and function together but to do so in total harmony. These camchest kits take the guess work out of the ordering process and guarantees the engine builder maximum reliability, peak performance and the coolest engine and oil temperatures obtainable.
- RACE SERIES kit
- Quieter and smoother engine operation
- Increase oil pressure, scavenge volume and engine oil flow
- 27% more pressure and scavenge gear volume over stock
- 42% more scavenge volume with port sizing, matched passages and holes to the engine case
- 68% more oil volume to the crankshaft and connecting rod bearing
- 15-25 degree cooler engine temperatures
- 15-30 degree cooler oil temperatures
- 10-30 more PSI of oil pressure
- Reduces wet sumping, blow by and oily air cleaners
- Magnets in oil pump to help protect gears and pressure relief valve
- Test results show 2 HP gain and 2 ft/lbs of TQ gain to the rear wheel on Milwaukee Eight
- NOTE: FEULING test results show a 50% reduction of engine sump oil level.
521 CAM - Aggressive pulling power with a nasty sound, the REAPER 521 grind will shine in 114 and larger cubic inch engines with added compression ratio. Ported cylinder heads are not required but will complement the cam and add even more pulling power throughout the range. The stock throttle body produces an excellent powerband and use of a high flow throttle body will increase peak power numbers. A high flow exhaust system and air cleaner is highly recommended for optimal performance.
NOTE: High Lift valve springs are required on stock cylinder heads, see FEULING BEEHIVE valve spring kit #1107 (DRAG# 0926-2973) or #1108 (DRAG# 0926-2974). SE cylinder heads have high lift valvesprings and will accept the 521 grind cam.
Made in the U.S.A.
| PRODUCT NAME | CAMCHEST KIT |
| TYPE | CHAIN |
| MODEL | RACE SERIES® |
| GRIND | 521 SERIES |
| INTAKE LIFT | 0.518" |
| INTAKE DURATION | 231° |
| EXHAUST LIFT | 0.521" |
| EXHAUST DURATION | 243° |
| FEATURES | OIL COOLED |
| UNITS | KIT |
| RIDING STYLE | STREET |
